Product Description
Download :

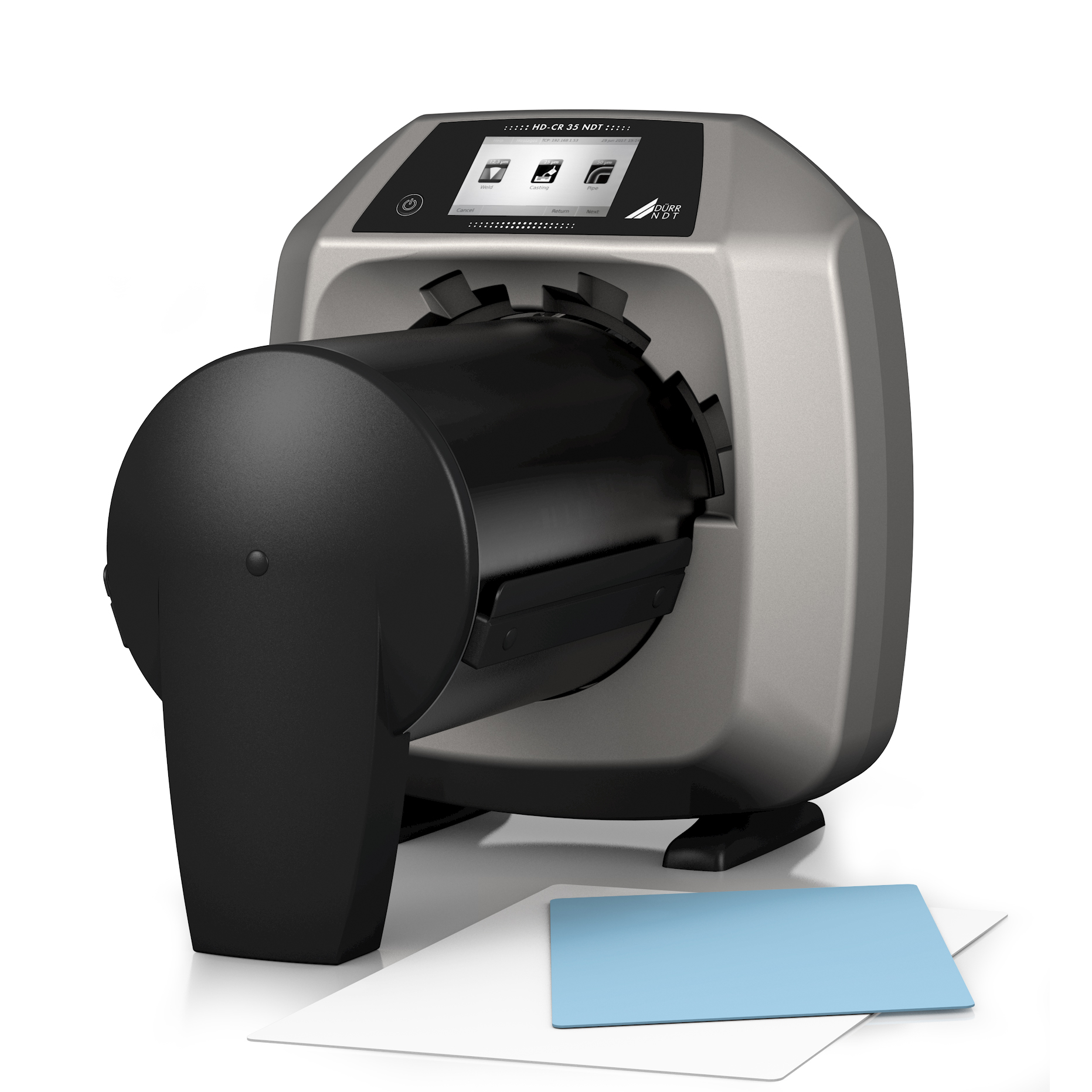

Specs sheet Video 1DURR HD-CR 35 NDT Computed Radiography System
This computed radiography portable scanner is the only manufacturer offering the highest 30 microns Spatial Resolution (SRb) BAM certified, it is capable of running extra-long imaging plates. Multi-focus lasers for optimum SNR values. The system ships preconfigured and is ready to use with a few simple connections. 5-year warranty.
Computer and D-TECT X software sold separately.
Features:
- Laser spot size: 12.5, 25, 50 microns
- SRb: 30 microns (BAM certified)
- 16BITS
- Min/max: imaging plates: 2-35.5cm wide x 3-200cm long (0.8” to 14” wide x 1.2” to 79” long).
- Power supply: 100-240VAC, 50-60Hz – 140Watt
- Internal storage: SDHC, maximum of 32 GB.
Contact us for a demo or to discuss your application, requirements, available options and/or receive a quote.
- HD-CR 35: DURR, HD-CR 35 Scanner, 30 SRb
- CR 35: DURR, CR 35 Scanner 80 SRb
- D-TECTX: DURR D-TECT X software (image acquisition, viewing, analysis, reporting and image management).
