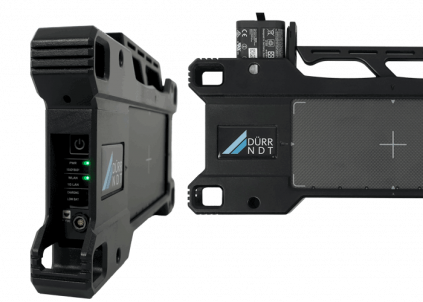

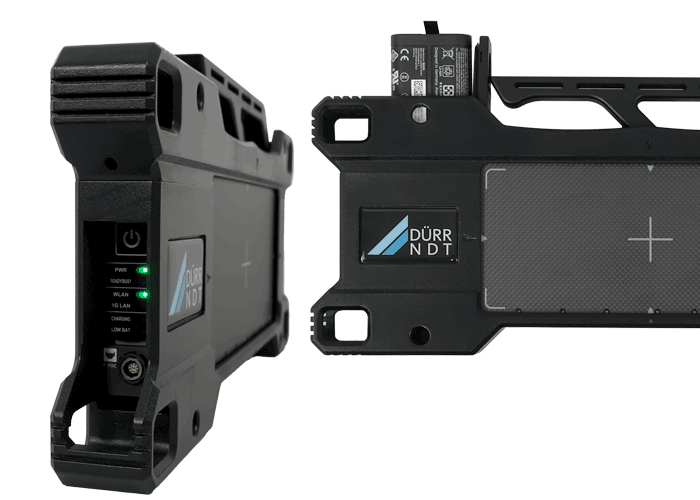

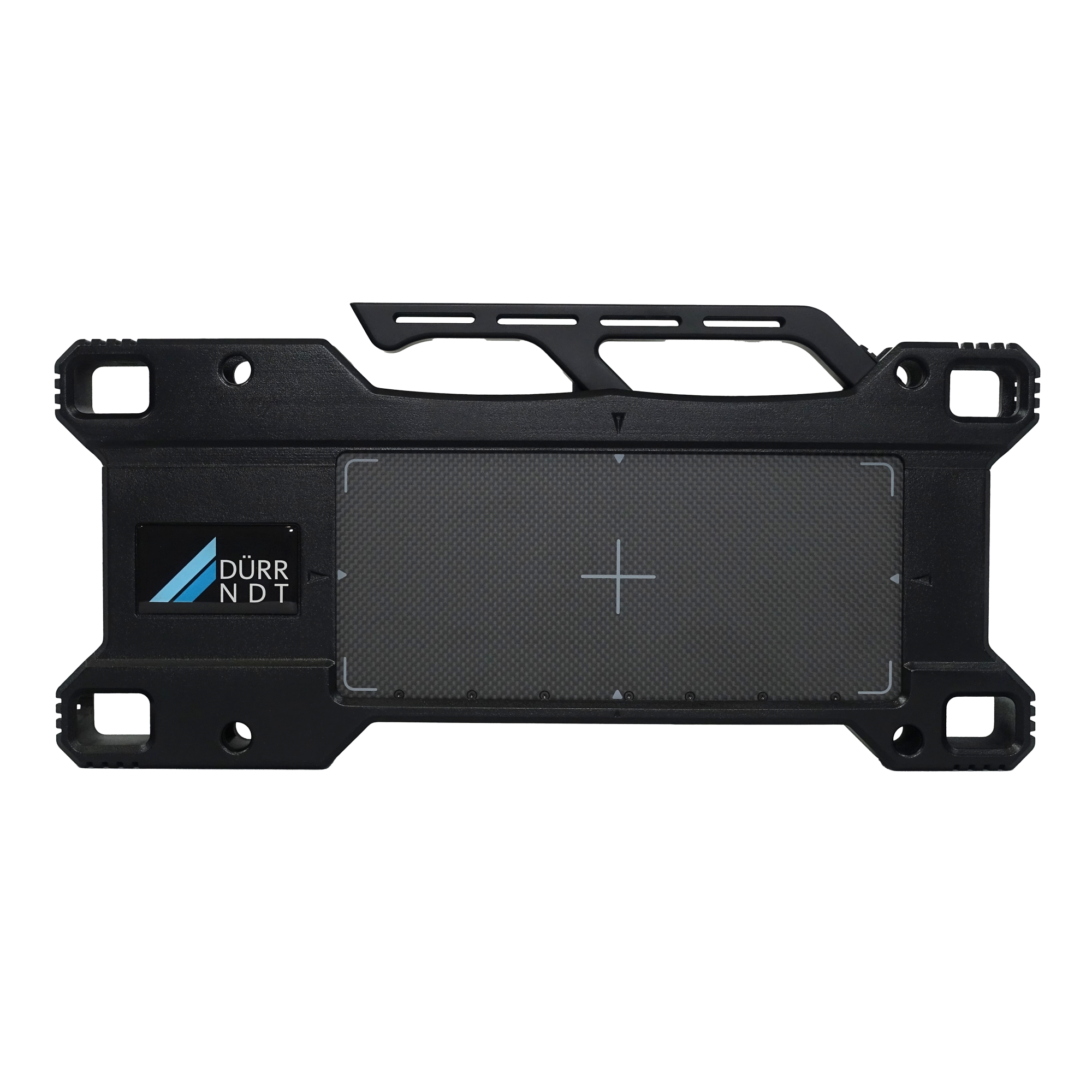

DURR, D-DR 1024 Portable Flat Panel

DURR, D-DR 1024 Portable Flat Panel

Compact, high-resolution digital detector array with 76 μm pixel pitch. Available scintillator resolutions: Plus (SRb = 130 μm) and Ultra-Fine (SRb = 80 μm), designed for use with X-ray and gamma sources up to 350 kV. 16-bit output. Built for stationary or mobile use. IP67.

Kit includes:
• D-DR 1024 DDA panel with integrated Wi-Fi (50 m line of sight / 150 ft)
• Detachable carry handle
• Two lithium-ion batteries
• Battery charger
• Imaging area: 97 mm × 233 mm (3.82″ × 9.2″)
• Ethernet and power adapter cable (7 m)
• 2-year warranty

Computer and D-TECT X software sold separately.

Contact us for a demo or to discuss your application, requirements, available options and/or receive a quote.

Other models available:

• D-DR 1024: DURR 1024 Flat Panel – 10″
• D-DR 2329: DURR 2329 Flat Panel – 12″
• D-DR 3643: DURR 3643 Flat Panel – 17″
• D-TECT X: DURR D-TECT X software (image acquisition, viewing, analysis, reporting, and image management)
