Product Description
Download :
Specs sheetDURR, 1043B Bendable DR Detectors 4”x17”

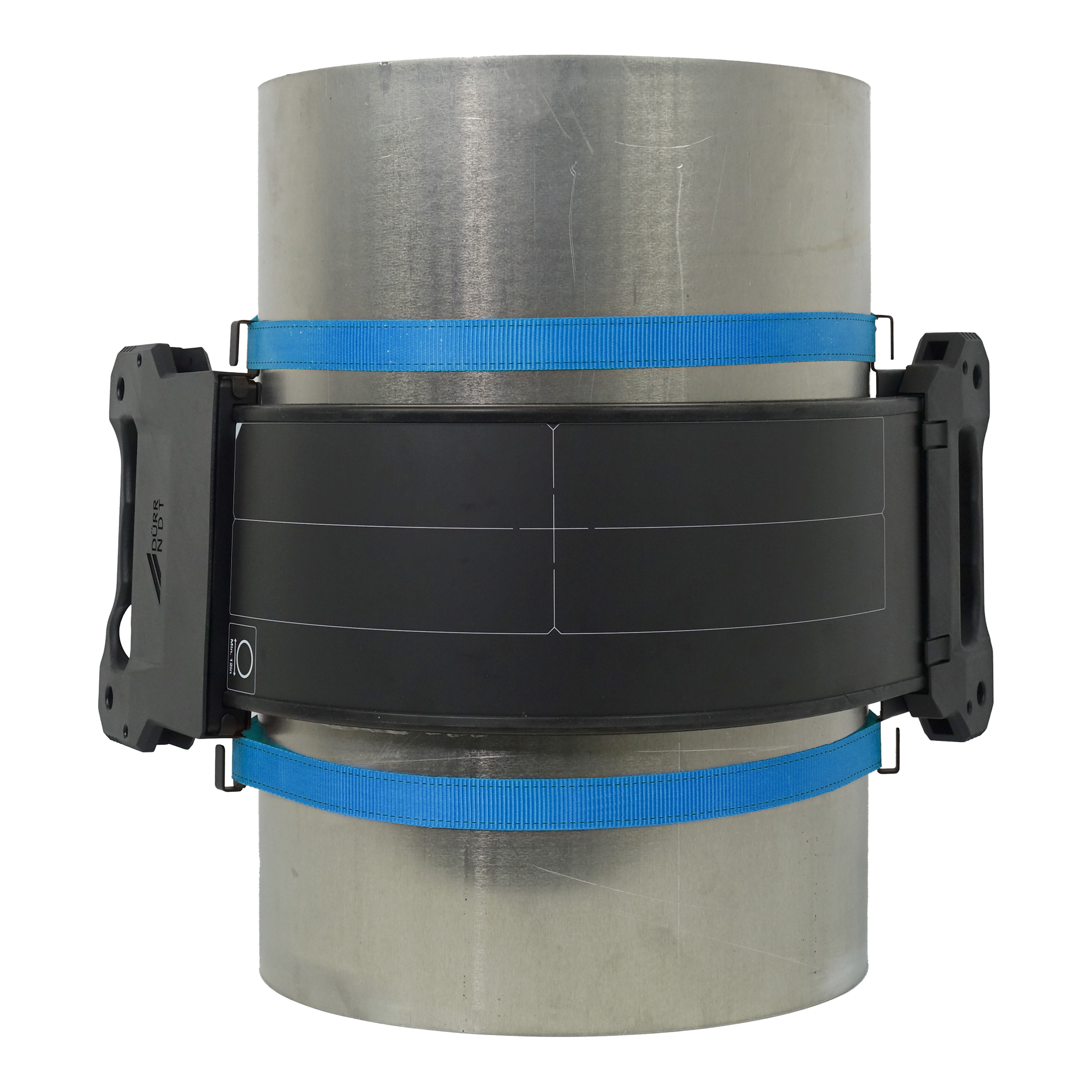

Rugged, high-resolution bendable detector, 99μm pixel pitch, for inspecting circumferential weld with diameters of 300mm (12”) and above. Exposure possible on both sides of detector, it is shielded for use up to 450kV. IP67.
Kit includes:
- 1043B DDA panel with integrated Wifi 50m line of sight (150 feet).
- ECU (External Connection Unit) with 3m cable.
- Two lithium-ion batteries
- Imaging area of 97x427mm (82″ x 16.8″).
- Battery charger with 120VAC power supply
- Ethernet cable (7m).
- 2-year warranty.
- Computer and D-TECT X software sold separately.
Contact us for a demo or to discuss your application, requirements, available options and/or receive a quote.
1043B: DURR, 1043B Bendable DR Detectors 17”
1025B: DURR, 1025B Bendable DR Detectors 10”
D-TECTX: DÜRR D-TECT X software (image acquisition, viewing, analysis, reporting and image management).
