DURR, 1025B Bendable DR Detectors 4“x10“

Product Description

Download :

DURR, 1025B Bendable DR Detectors 4”x10”

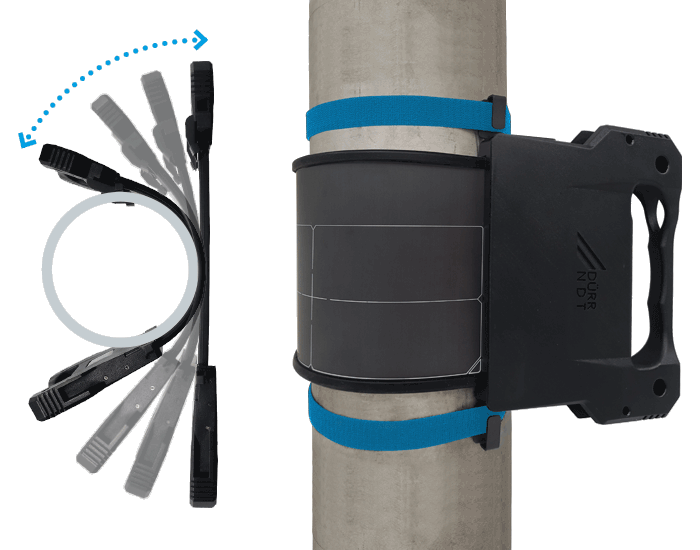

Rugged, high-resolution bendable detector, 99μm pixel pitch, for inspecting circumferential weld with diameters of 150mm (6”) and above. Exposure possible on both sides of detector, it is shielded for use up to 450kV. IP67.

Kit includes:

• 1025B DDA panel with integrated Wifi 50m line of sight (150 feet).
• ECU (External Connection Unit) with 3m cable
• Two lithium-ion batteries
• Imaging area of 97x249mm (3.8”×9.8”)
• Battery charger with 120VAC power supply
• Ethernet cable (7m)
• 2-year warranty
• Computer and D-TECT X software sold separately

Contact us for a demo or to discuss your application, requirements, available options and/or receive a quote.

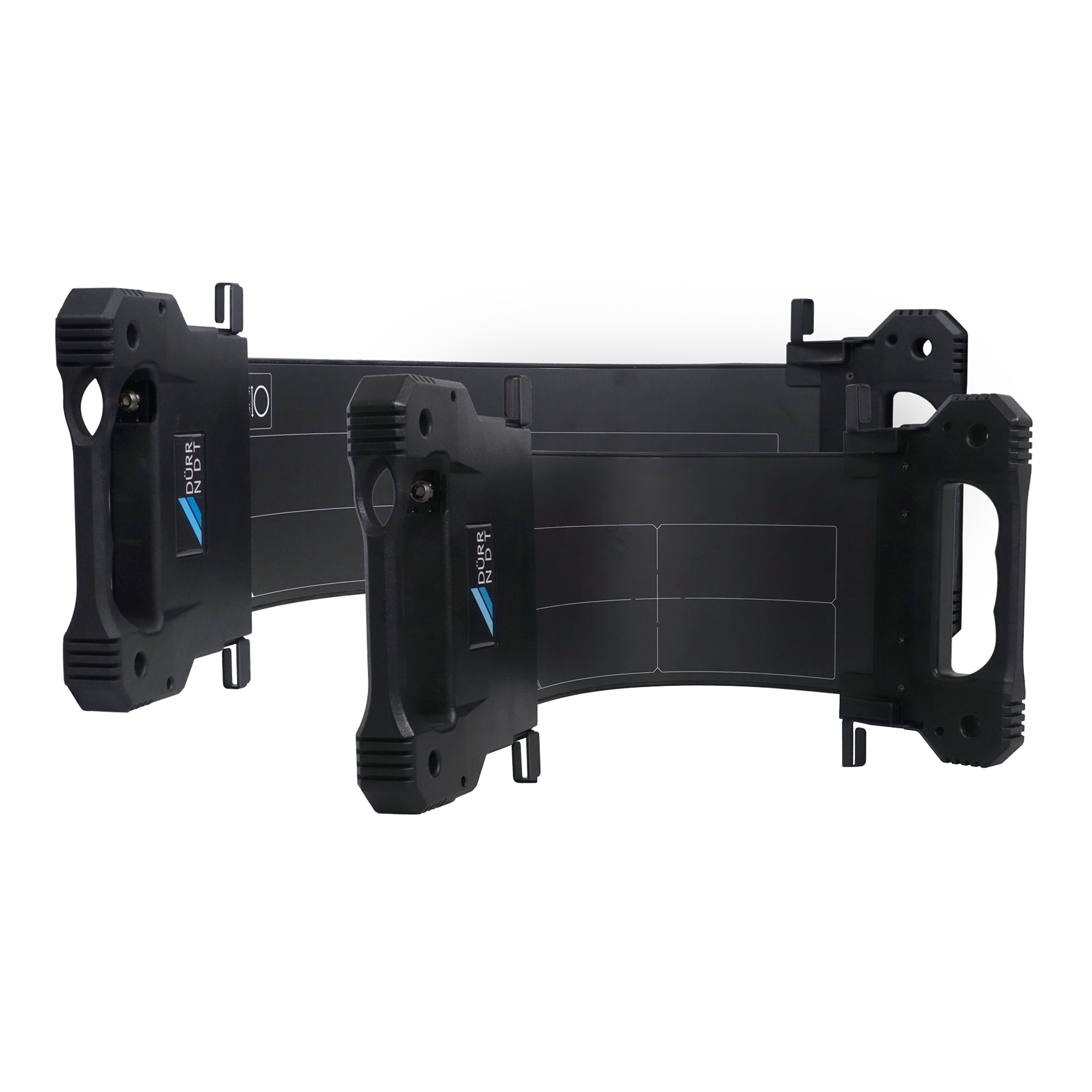

• 1025B: DURR, 1025B Bendable DR Detectors 10”
• 1043B: DURR, 1043B Bendable DR Detectors 18”
• D-TECTX: DURR D-TECT X software (image acquisition, viewing, analysis, reporting and image management).
