Specs sheet Catalog Video 1NDT Systems CrosScan, Automatic High Precision Scanner

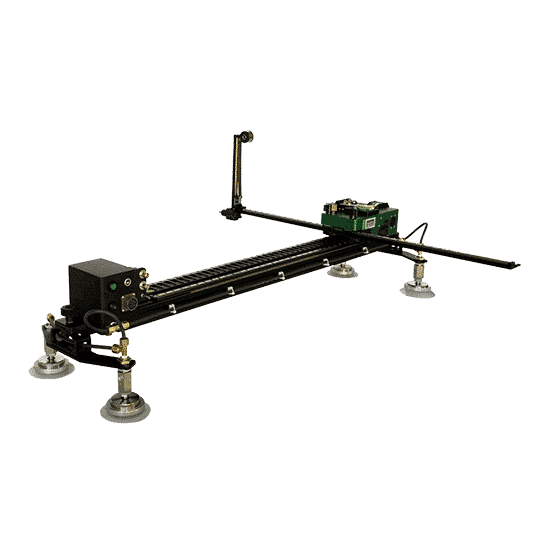

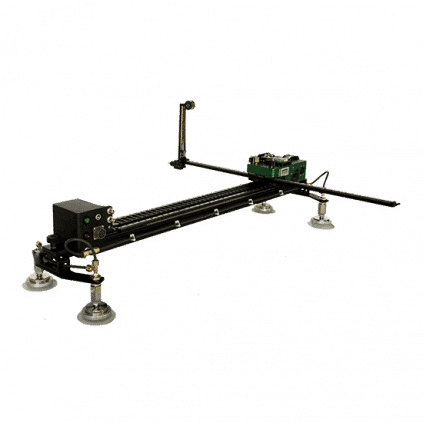

The CrosScan is a high precision two-axis (18″L x 15″H) automated scanner for flat or slightly curved surfaces. It can scan 8″/s (203mm/s) with a resolution of 0.02″ (0.5mm). The spring loaded and height adjustable gimbal mount and different probe holders ensure that the transducer contacts the surface with a constant pressure, while the water feed system provides efficient signal into the inspected object. Delivered with MCU-1 external battery, 120VAC charger, suction cup feet, standard probe holder, user manual and rigid transport case.
Contact us to discuss your application, requirements, available options (scanners, probes, cables) and/or receive a quote.
- CrosScan: Portable high precision two-axis (18″L x 15″H) automated scanner complete kit.
Other models:
- BONDHUB-2: BondHub complete kit: BondHub C-Scan data acquisition system with computer, keyboard, mouse, two Li-ion batteries, 115-230VAC charger, Bondhub connection cable, user manual and rigid transport case.
- BOND-3100: Bondascope 3100 complete kit: Bondascope 3100 instrument, battery, 120VAC charger, user manual, calibration certificate and rigid transport case.
